PRECISION PRIME is the entry point to jet cooling: efficient, reliable die cooling for small to medium die casting setups, without the complexity.
It drives cooling water at high velocity into the die's hot spots — the thin sections and core pins that ordinary line cooling never reaches — so the casting solidifies sound instead of tearing itself apart as it cools.
Plug & play operation and low maintenance cost, suitable up to 20 pins.
Specs
| Core pins cooled | 20 Nos |
|---|---|
| Cooling channels | 02 Nos |
| Touch screen HMI | Delta 7″ |
| Data storage & transfer | 05 molds / 200 productions |
| Air & water pressure measure | Yes |
| Error diagnostic & recording | Yes |
| Dimension (H×W×D) | 1500×1000×500 mm |
| Operation | Plug & play; runs on a potential-free shot signal from the DCM |
Figures are from the Precision System Equipments Catalogue, Edition 2025. Mold-side hardware and channel selection are quoted against your die — send us your drawings.

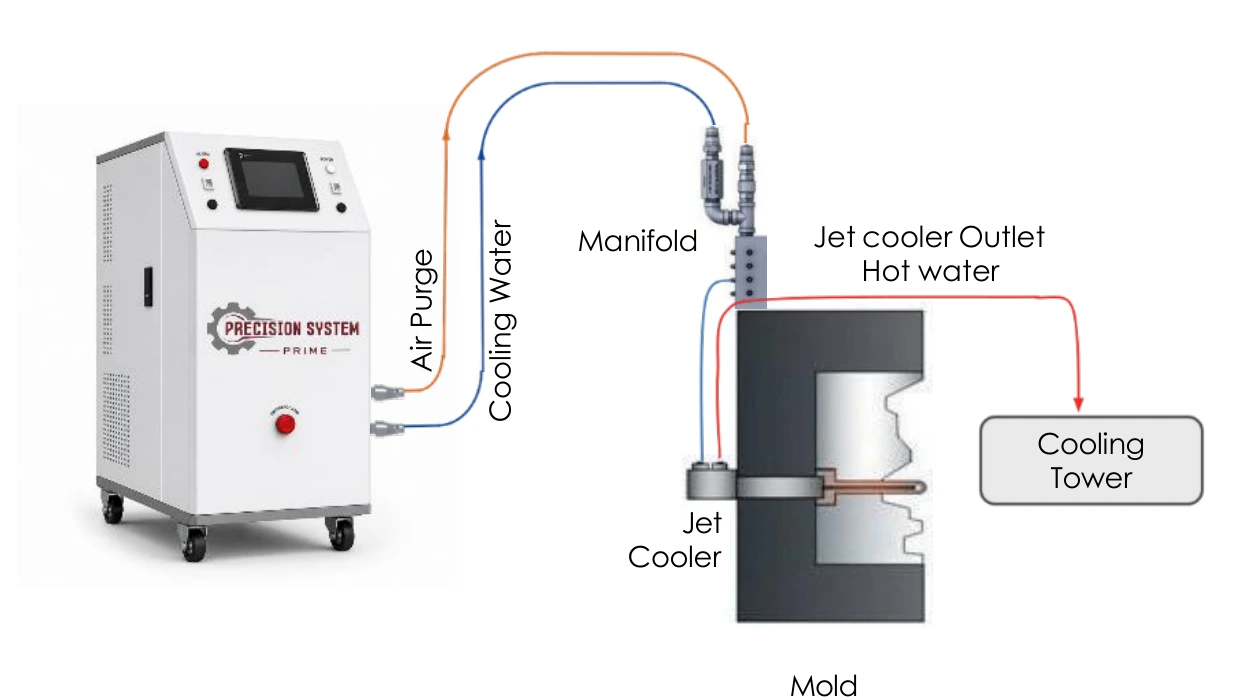

How it is plumbed
